Water Separator
Our water separators have
been designed for the removal of bulk liquid water and particulate from
compressed air and gases. Unique centrifugal action removes contaminants at low-pressure
drop for maximum energy saving and are available from 1/4”-3” pipe sizes and extend
to 2200 m3/h (1294 cfm).
Note 1: Even high efficient
condensate separators cannot remove 100% of the oil from the air stream calling
for coalescing and particulate filters to be installed to remove the fine
traces of oil, water and particles.
Note 2: Drain valves are fitted as
standard. All separator bodies are coated with electrostatic powder paint
finish both inside and out.

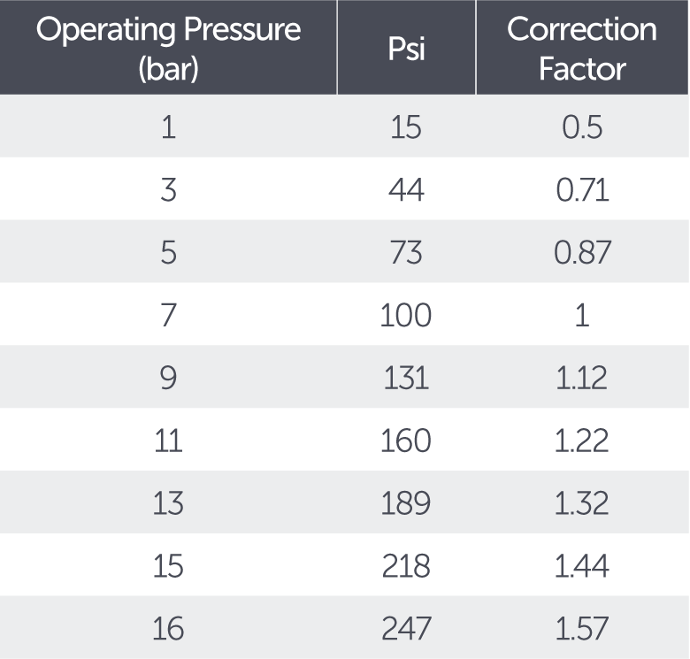

Correction Factor
For maximum flow rate, multiply model flow rate show in the above table by the correction factor corresponding to the working pressure.

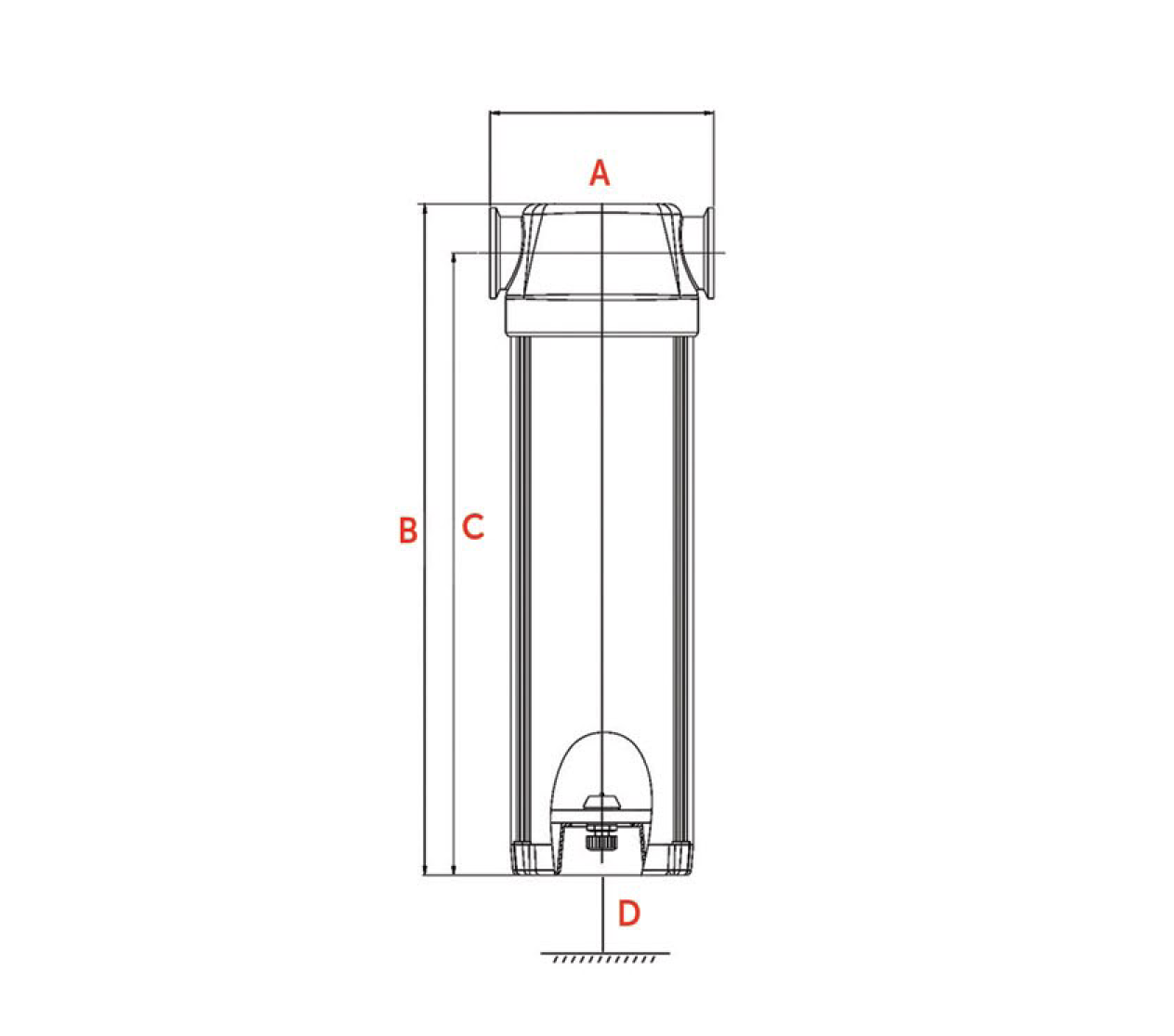

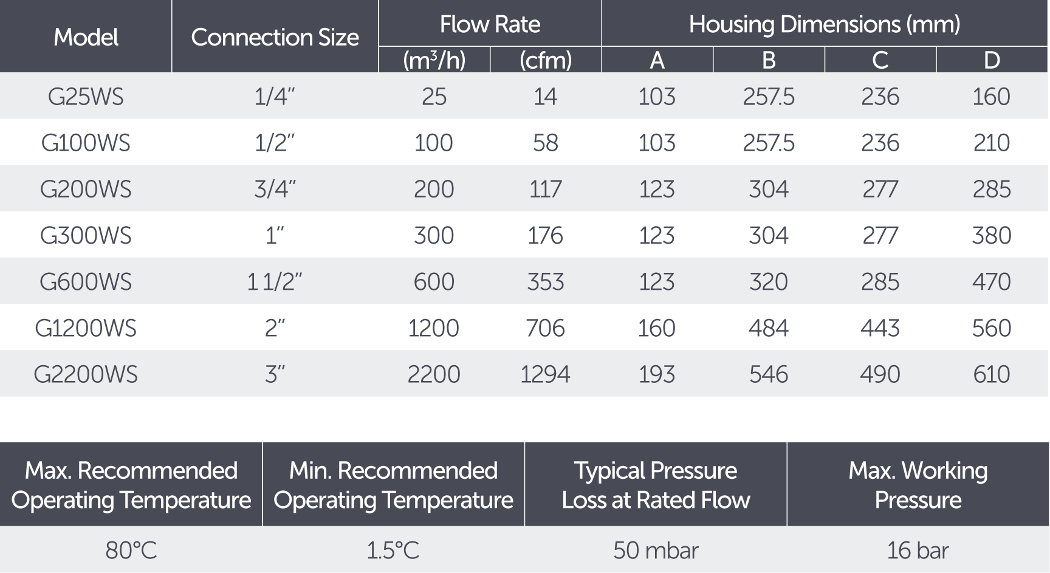

Technical Specifications
Our water separators have been designed for the removal of bulk liquid water and particulate from compressed air and gases. Unique centrifugal action removes contaminants at low-pressure drop for maximum energy saving and are available from 1/4”-3” pipe sizes and extend to 2200 m3/h (1294 cfm).
Note 1: Even high efficient condensate separators cannot remove 100% of the oil from the air stream calling for coalescing and particulate filters to be installed to remove the fine traces of oil, water and particles.
Note 2: Drain valves are fitted as standard. All separator bodies are coated with electrostatic powder paint finish both inside and out.
Correction Factor
For maximum flow rate, multiply model flow rate show in the above table by the correction factor corresponding to the working pressure.
Technical Specifications

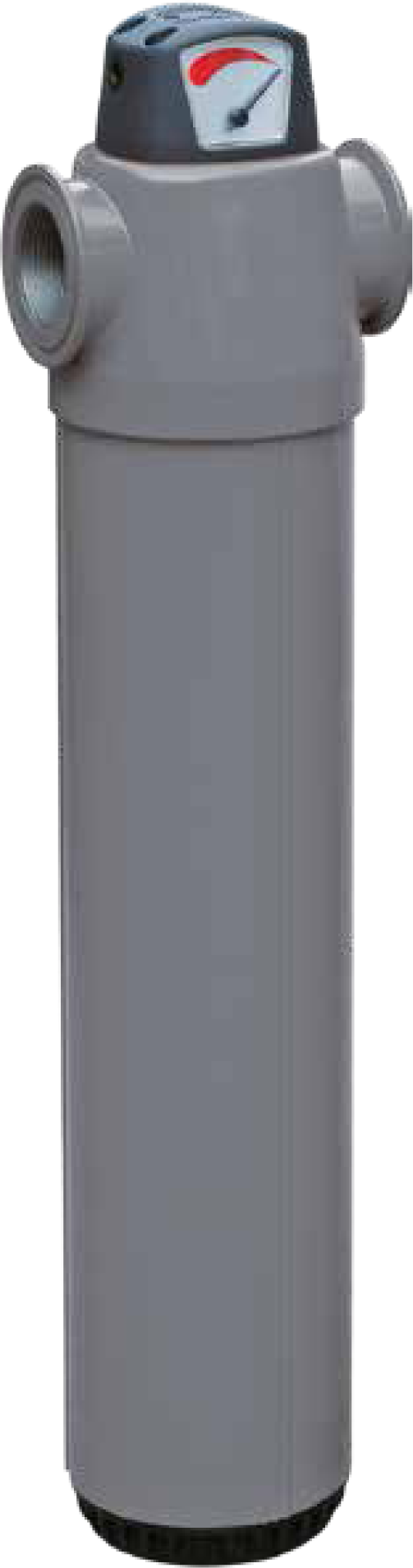

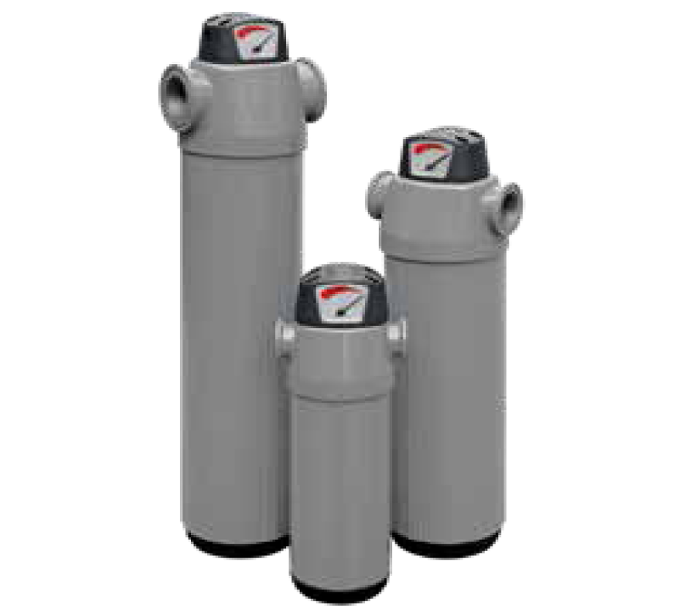

G Series Compressed Air Filters
Mikropor Compressed Air Filters have been designed to
meet all requirements of the compressed air filtration needs. These air filters
provide more comfortable usage, higher efficiency, lower pressure drop and more
port size options to the end users.
Filtration
Due to deep pleating
technique, the filtration area is significantly increased leading to a better
filtration and higher dirt holding capacity. Mikropor Compressed Air Filters
have been designed to remove air borne contaminants in compressed air stream,
delivering energy efficient operation and reliable performance.
Features
Our air filters of four
efficiency ratings, start with 0.01 micron at up to 290 psi (20 bar)-1/4” and
extend to 3” NPT/BSP pipe sizes. A protected auto float drain (2 mm orifice) is
standard for optimal and reliable removal of liquid contaminants.
These air filters have a
zero-porosity aluminum and durable epoxy powder-coating finish along with a
corrosion-resistant internal coating for a long service life. Filter combinations
are configured to meet specific application requirements. Filters comply with
PED and perform as per related ISO 8573 standards. These filters could be
equipped with differential pressure gauges for easy maintenance and energy
efficiency.
Mikropor compressed air filters are always recommended with this system.
Types of Compressed Air Filters
P Pre-Filter / Particulate Filter (Filter/Element air flow direction is outside to inside)
X General Purpose Filter / Water Removal (Filter/Element air flow direction is inside to outside)
Y Coalescing Filter / Oil Removal (Filter/Element air flow direction is inside to outside)
A Activated Carbon Filter / Odor Removal (Filter/Element air flow direction is outside to inside)

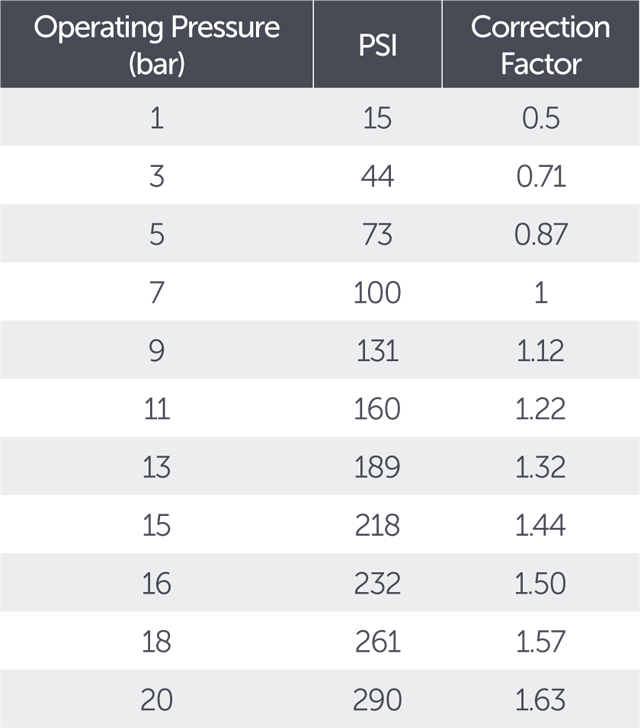

Correction Factor
For maximum flow rate, multiply model flow rate show in the above table by the correction factor corresponding to the working pressure.

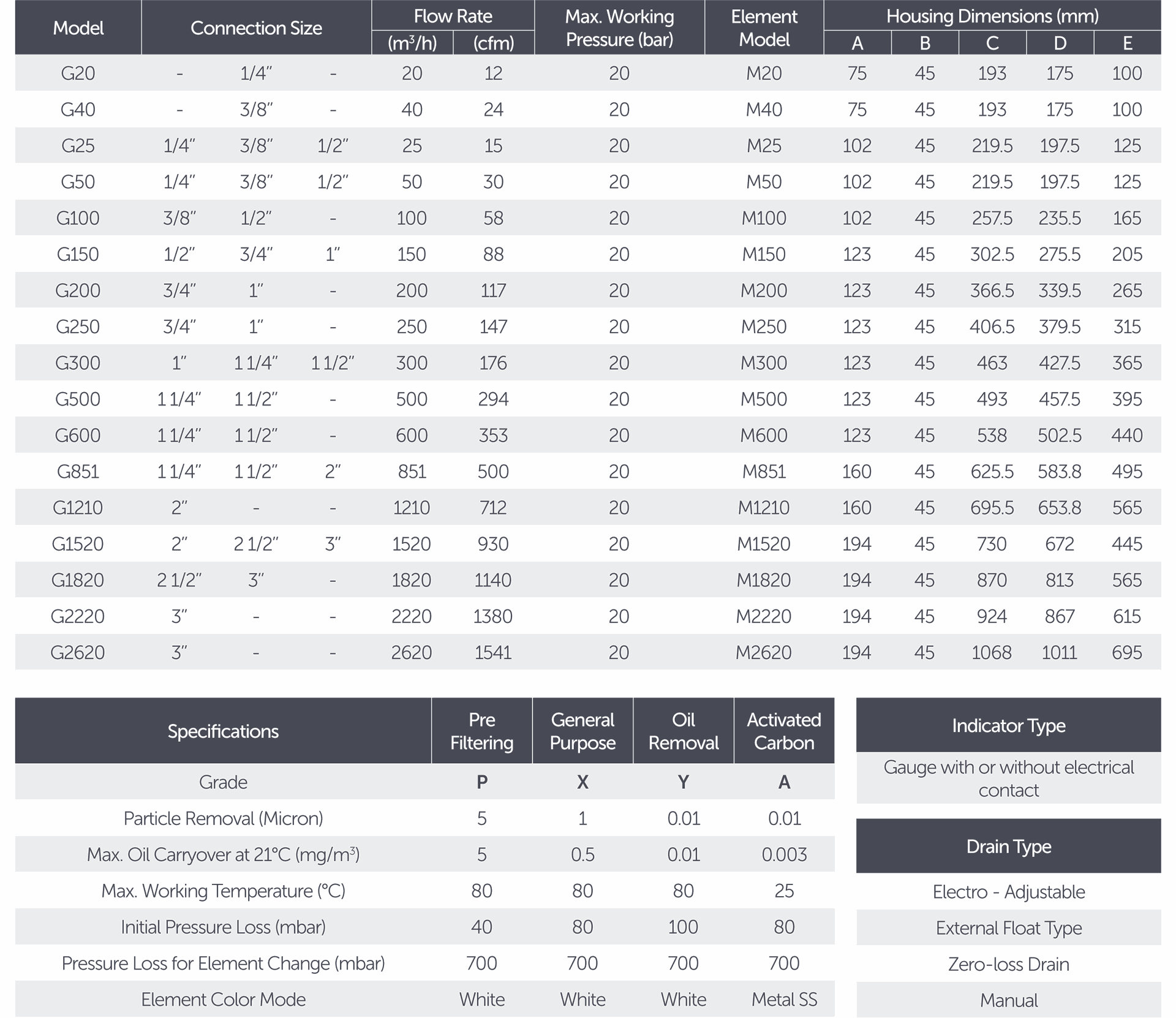

Technical Specifications
Note:
1) Grade A must not operate in oil saturated conditions.
2) Grade A elements should be replaced periodically to suit the applications but must be changed at least every six months.
3) Grade A will not remove certain gases including carbon monoxide and carbon dioxide. Please refer to works if in doubt.
4) Flow rates are based on a 7 bar operating pressure, for flows at other pressures use correction factor given above.
5) All filters are suitable for use with mineral and synthetic oils.
6) Gauge type pressure indicators are fitted to models G20 to G2620 as standard.
7) All filters are in conformity with the Pressure Equipment Directive (97/23/EC).
Mikropor Compressed Air Filters have been designed to meet all requirements of the compressed air filtration needs. These air filters provide more comfortable usage, higher efficiency, lower pressure drop and more port size options to the end users.
Filtration
Due to deep pleating technique, the filtration area is significantly increased leading to a better filtration and higher dirt holding capacity. Mikropor Compressed Air Filters have been designed to remove air borne contaminants in compressed air stream, delivering energy efficient operation and reliable performance.
Features
Our air filters of four efficiency ratings, start with 0.01 micron at up to 290 psi (20 bar)-1/4” and extend to 3” NPT/BSP pipe sizes. A protected auto float drain (2 mm orifice) is standard for optimal and reliable removal of liquid contaminants.
These air filters have a zero-porosity aluminum and durable epoxy powder-coating finish along with a corrosion-resistant internal coating for a long service life. Filter combinations are configured to meet specific application requirements. Filters comply with PED and perform as per related ISO 8573 standards. These filters could be equipped with differential pressure gauges for easy maintenance and energy efficiency.
Mikropor compressed air filters are always recommended with this system.
Types of Compressed Air Filters
P Pre-Filter / Particulate Filter (Filter/Element air flow direction is outside to inside)
X General Purpose Filter / Water Removal (Filter/Element air flow direction is inside to outside)
Y Coalescing Filter / Oil Removal (Filter/Element air flow direction is inside to outside)
A Activated Carbon Filter / Odor Removal (Filter/Element air flow direction is outside to inside)
Correction Factor
For maximum flow rate, multiply model flow rate show in the above table by the correction factor corresponding to the working pressure.
Technical Specifications
Note:
1) Grade A must not operate in oil saturated conditions.
2) Grade A elements should be replaced periodically to suit the applications but must be changed at least every six months.
3) Grade A will not remove certain gases including carbon monoxide and carbon dioxide. Please refer to works if in doubt.
4) Flow rates are based on a 7 bar operating pressure, for flows at other pressures use correction factor given above.
5) All filters are suitable for use with mineral and synthetic oils.
6) Gauge type pressure indicators are fitted to models G20 to G2620 as standard.
7) All filters are in conformity with the Pressure Equipment Directive (97/23/EC).
GO Series Compressed Air Filters
New additions to our G
series, these compressed air filters are designed for easy element replacement
for “zero clearance” capability.
Features
Our air filters of four
efficiency ratings, start with 0.01 micron at up to 290 psi (20 bar)-1/4” and
extend to 3” NPT/BSP pipe sizes. A protected auto float drain (2 mm orifice) is
standard for optimal and reliable removal of liquid contaminants.
These air filters have a
zero-porosity aluminum and durable epoxy powder-coating finish along with a
corrosion-resistant internal coating for a long service life. Filter
combinations are configured to meet specific application requirements. Filters
comply with PED and perform as per related ISO 8573 standards. These filters
could be equipped with differential pressure gauges for easy maintenance and
energy efficiency.

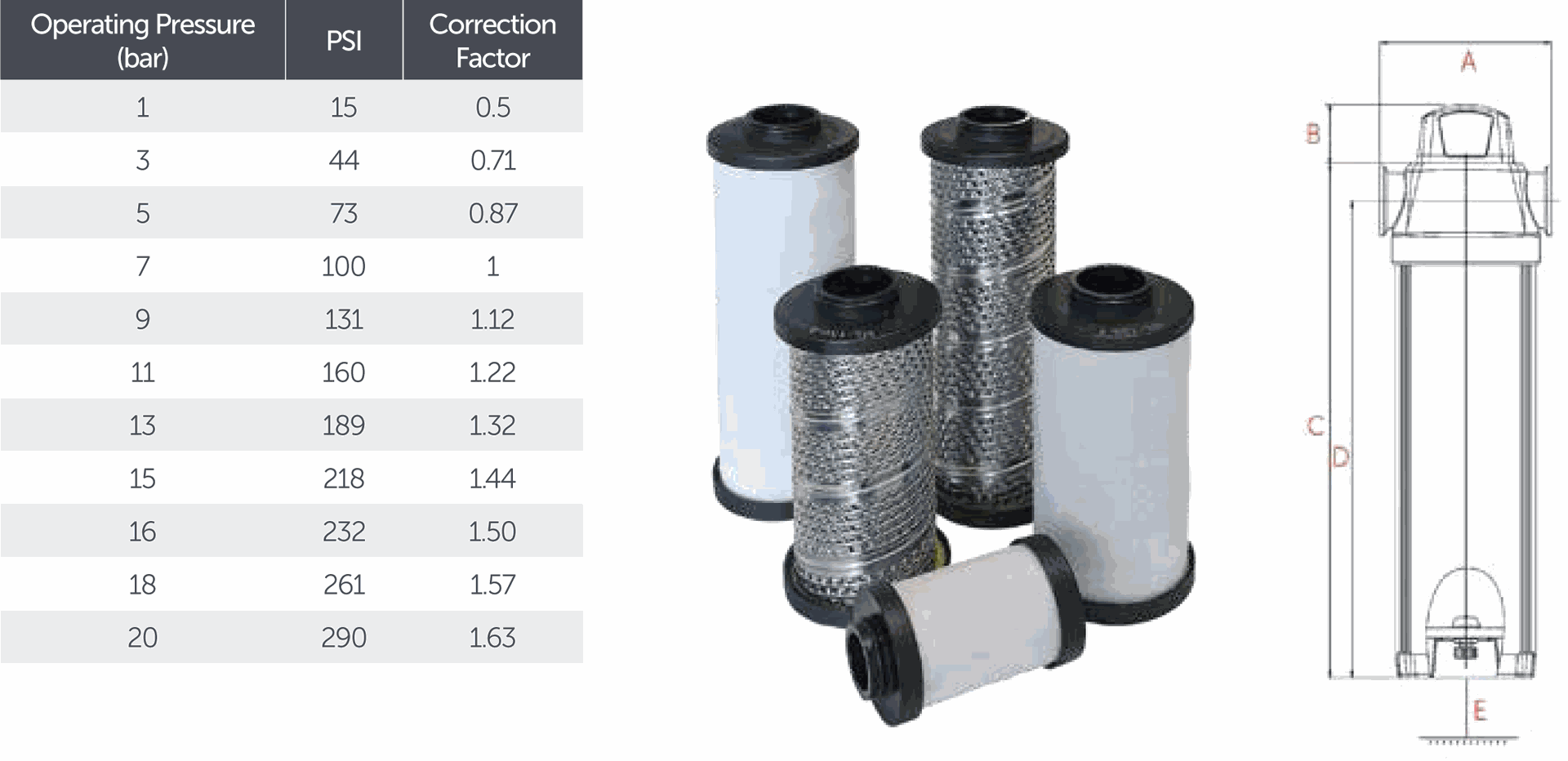

Element Features
Our Mikropor elements
offer a wide range of 1 micron to 0,01 micron. Durable element construction and
efficient drain layer ensures continued performance with optimal element change
intervals. Elements are also easy to replace with the head clips.

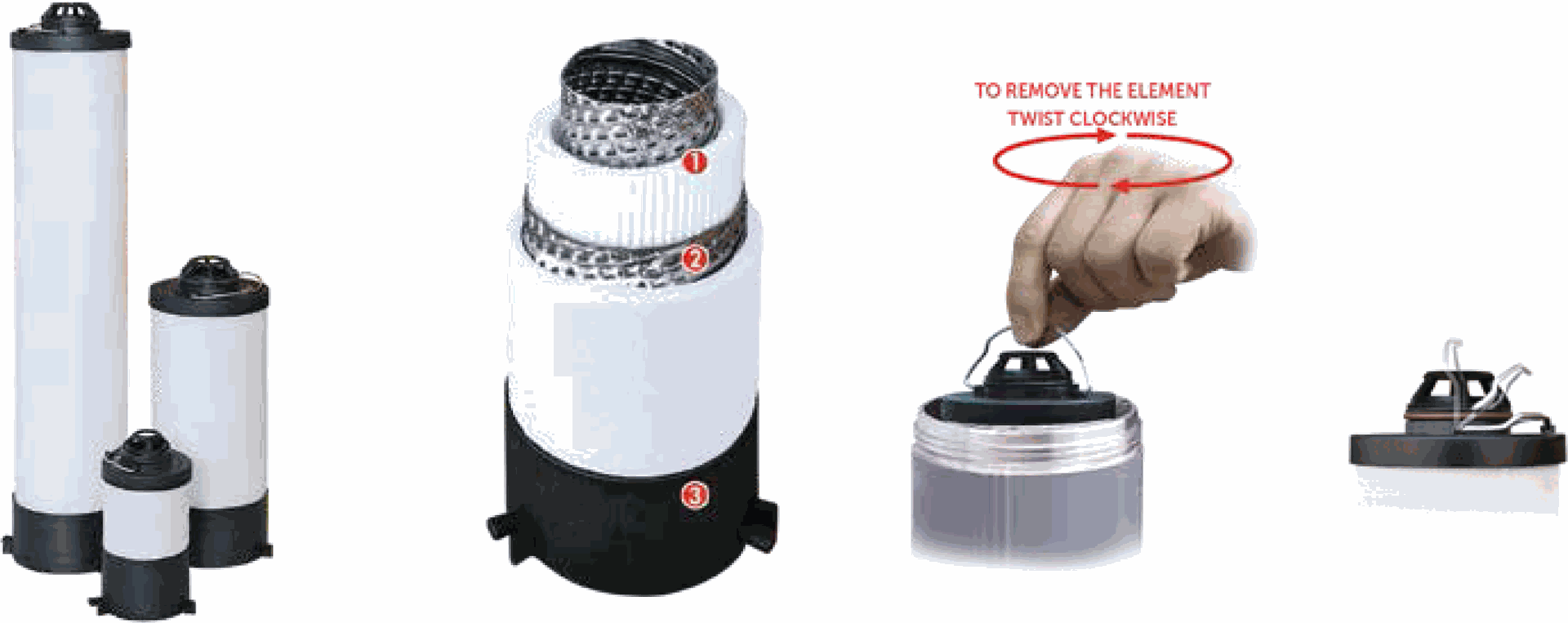

Mikropor Elements Have Been Designed for Easy Handling
1-
Deep pleating leads to lower pressure drop.
2-
Supreme collapse resistance due to fluted stainless tubing,
providing strength against differential pressure while improving the
performance by passing air diagonally through the element.
3- PVC impregnated foam favors water/oil drainage.
Head Clamping
Head Clamping provides serial connection of filters without any extra piping.
Drainage Ribs
Drainage Ribs favors the humidity flow.
Correction Factor
For maximum flow rate, multiply model flow rate show in the above table by the correction factor corresponding to the working pressure.

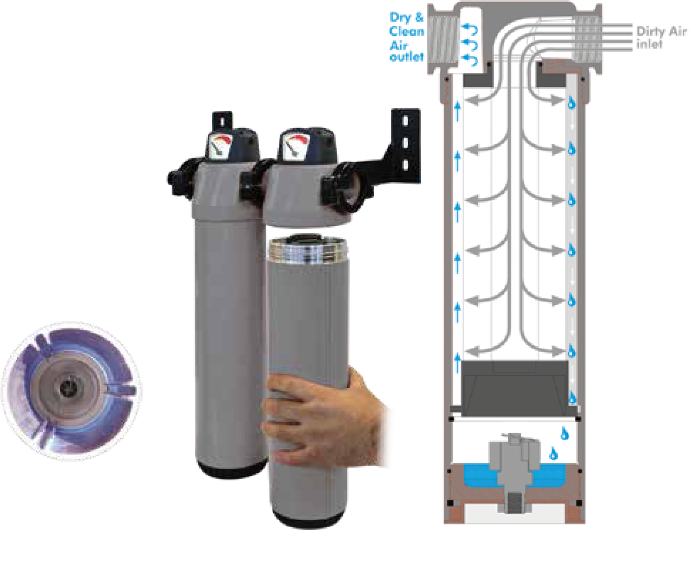

Zero Clearance
A major innovation for servicing the zero clearance design gives a quicker, easier, simpler filter change, with no need for any specialist tools.

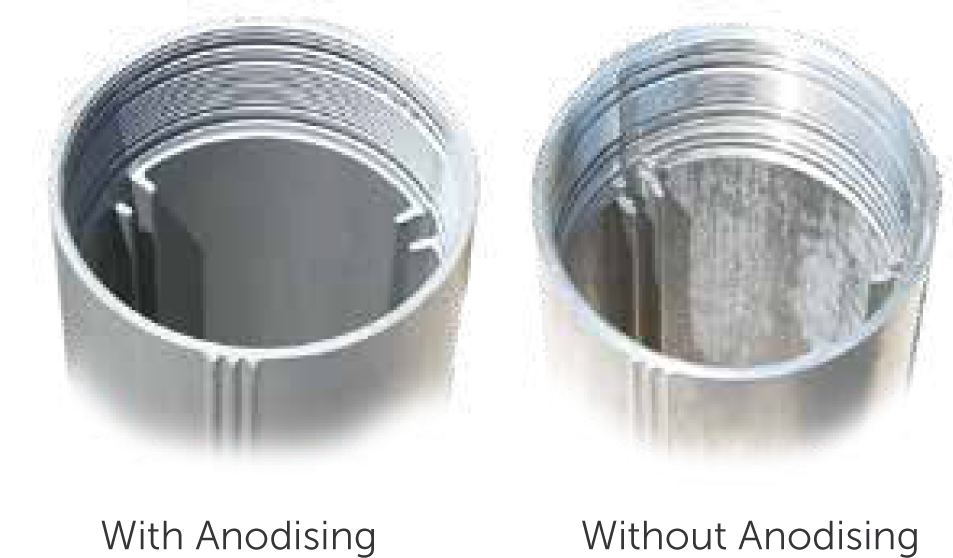

Anodising
Anodising provides supreme corrosion resistance. Anodised surface treatment is proven to be better than other surface treatment methods such as Alocrome coating.

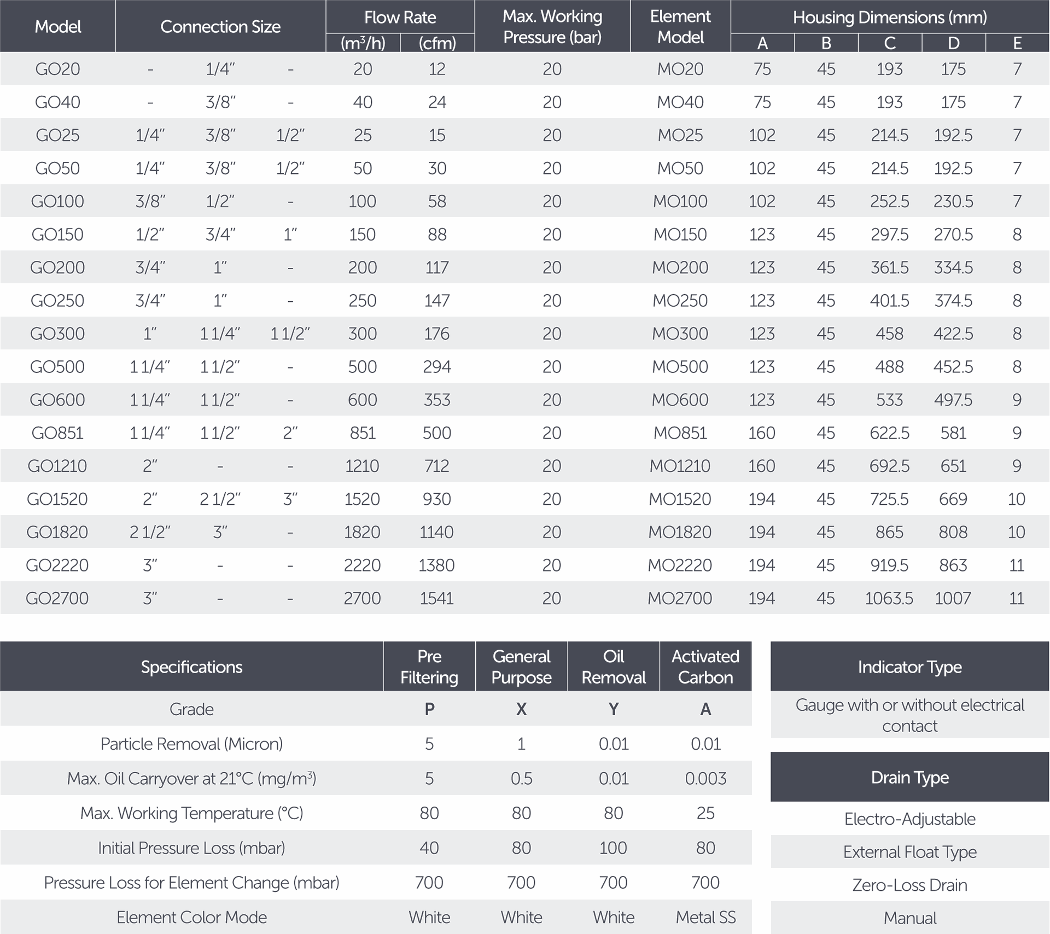

Technical Specifications
Note:
1) Grade A must not operate in oil saturated conditions.
2) Grade A elements should be replaced periodically to suit the applications but must be changed at least every six months.
3) Grade A will not remove certain gases including carbon monoxide and carbon dioxide. Please refer to works if in doubt.
4) Flow rates are based on a 7 bar operating pressure, for flows at other pressures use correction factor given above.
5) All filters are suitable for use with mineral and synthetic oils.
6) Gauge type pressure indicators are fitted to models G20 to G2620 as standard.
7) All filters are in conformity with the Pressure Equipment Directive (97/23/EC).
New additions to our G series, these compressed air filters are designed for easy element replacement for “zero clearance” capability.
Features
Our air filters of four efficiency ratings, start with 0.01 micron at up to 290 psi (20 bar)-1/4” and extend to 3” NPT/BSP pipe sizes. A protected auto float drain (2 mm orifice) is standard for optimal and reliable removal of liquid contaminants.
These air filters have a zero-porosity aluminum and durable epoxy powder-coating finish along with a corrosion-resistant internal coating for a long service life. Filter combinations are configured to meet specific application requirements. Filters comply with PED and perform as per related ISO 8573 standards. These filters could be equipped with differential pressure gauges for easy maintenance and energy efficiency.
Element Features
Our Mikropor elements offer a wide range of 1 micron to 0,01 micron. Durable element construction and efficient drain layer ensures continued performance with optimal element change intervals. Elements are also easy to replace with the head clips.
Mikropor Elements Have Been Designed for Easy Handling
1- Deep pleating leads to lower pressure drop.
2- Supreme collapse resistance due to fluted stainless tubing, providing strength against differential pressure while improving the performance by passing air diagonally through the element.
3- PVC impregnated foam favors water/oil drainage.
Head Clamping
Head Clamping provides serial connection of filters without any extra piping.
Drainage Ribs
Drainage Ribs favors the humidity flow.
Correction Factor
For maximum flow rate, multiply model flow rate show in the above table by the correction factor corresponding to the working pressure.
Zero Clearance
A major innovation for servicing the zero clearance design gives a quicker, easier, simpler filter change, with no need for any specialist tools.
Anodising
Anodising provides supreme corrosion resistance. Anodised surface treatment is proven to be better than other surface treatment methods such as Alocrome coating.
Technical Specifications
Note:
1) Grade A must not operate in oil saturated conditions.
2) Grade A elements should be replaced periodically to suit the applications but must be changed at least every six months.
3) Grade A will not remove certain gases including carbon monoxide and carbon dioxide. Please refer to works if in doubt.
4) Flow rates are based on a 7 bar operating pressure, for flows at other pressures use correction factor given above.
5) All filters are suitable for use with mineral and synthetic oils.
6) Gauge type pressure indicators are fitted to models G20 to G2620 as standard.
7) All filters are in conformity with the Pressure Equipment Directive (97/23/EC).
