Permanent Magnetic V.S.D Screw Air Compressor PM Series
Working Power: 22~75 KW (30~100 HP)
Free Air Delivery: 0.8~13.3 m³/min (28.5~469.7 cfm)
Working Pressure: 7/8/10 bar (101.5/116/145 psig)
PRODUCT ADVANTAGES
1 Down-to-earth investment for the future
Innovative Air end and PM motor combined means efficient transmission.
Efficiency & IP65 protection grade.

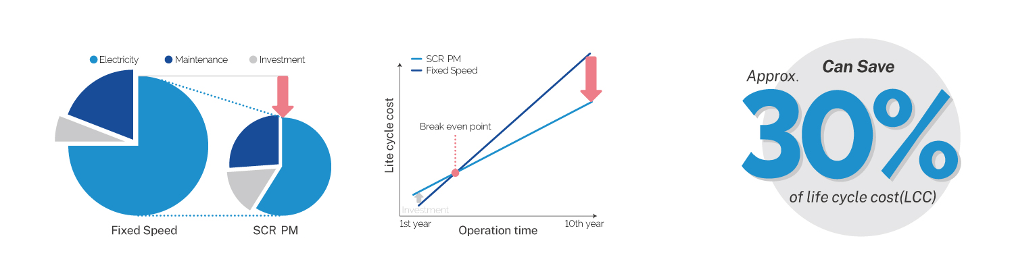

2 What you pay should be only for what you use
Innovative Air end and PM motor combined means efficient transmission.
IE4 efficiency & IP65 protection grade.
Bearing free PM motor means no maintenance required.
Motor winding protected by epoxy resin, means no risk of short circuit.

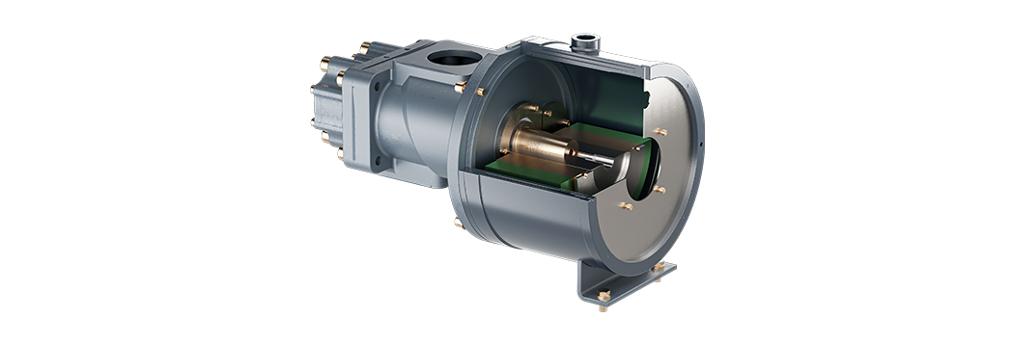

3 Special Dual Housing Oil Cooling Motor
Innovative closed loop oil cooled motor.
Special coolant and independent fan.

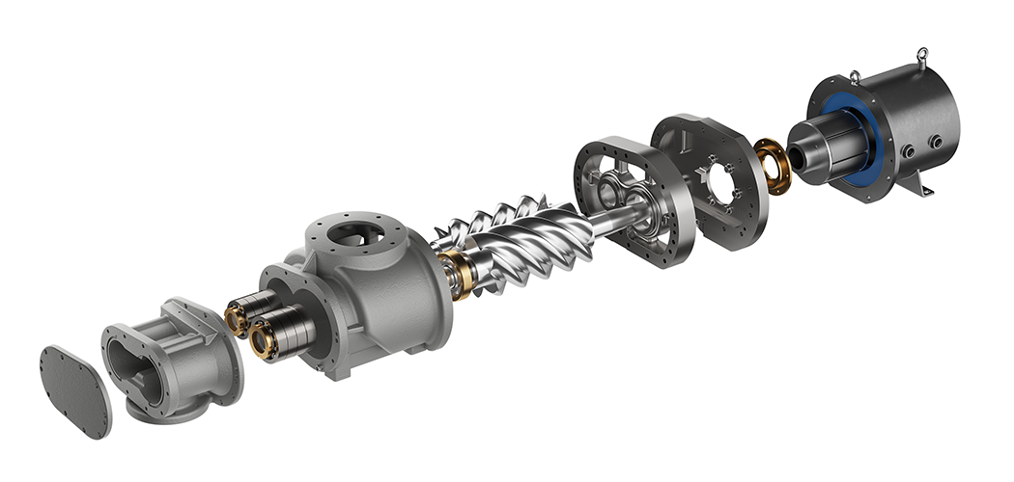

4 Special morse connection
Motor rotor is directly mounted on the air end rotor shaft.
Motor with no gears or belts, no shaft seal, no coupling.
Zero transmission loss.
Easy installation and dismantling.
No adjustment/ alignment required.
Reduced maintenance cost

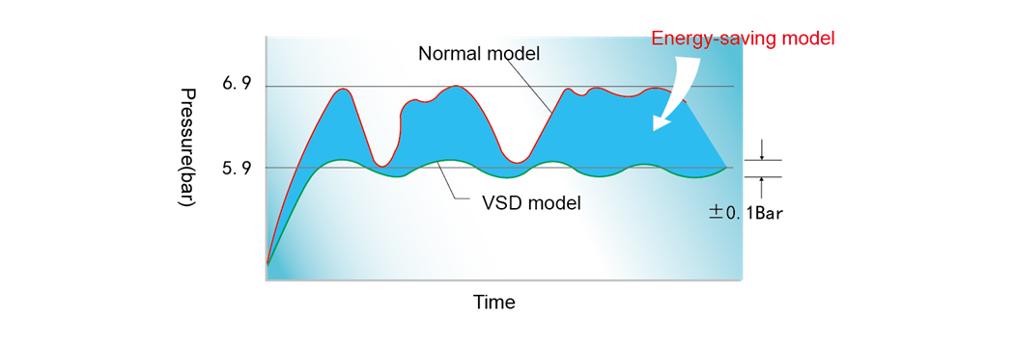

5 Double Frequency conversion system
Double Frequency conversion system.
Constant pressure output.

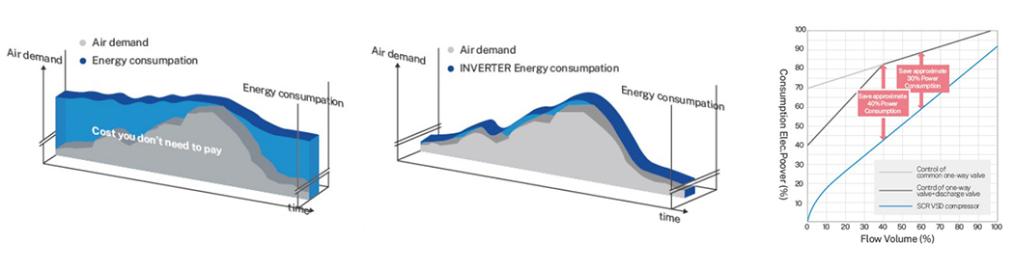

Significant energy-saving.
Match to demand pressure and flow rate.
Constant temperature output.
PRODUCT PARTS
PRODUCT DETAILS
① Permanent Magnet (PM) motor
● Exceed IE4 standards
● Oil-cooled motor
● variable speed drive
● IP65 protection
② New compressor air end
● New improved rotor profile
● R&D in Japan
●Designed for 10 years* of reliable operation
③ Inlet filter
● Nano scale Heavy duty
● filtration accuracy up to 99.9%
● Dust particles below 0.3 micron
● Pressure drop indicator
④ Cooling fan
● VSD control
● Compact
● Low noise level
● High capacity for optimized cooling
● Low power consumption
⑤ Classic cooler design
● Separate oil/air cooler
● Easy access for maintenance
● Paint anti-corrosion coating on surface
● Oversize cooler design
⑥ Innovative vectorial inverter
● CE, UL, CUL, ROHS certification
● Meet EMC C3 and C2 requirements
● Independent cooling air duct design
●Robust enclosure for trouble-free operation in the harshest conditions.
⑦ Plot® Touch controller
● 7.0 inch full color touch LCD screen
● Real-time Operation/ Maintenance/ Alarm information
● Operation record/ Chart display
● Weekly timer/Service history and planning
⑧ Inlet valve
● Optimizes the inlet flow of the air end.
● No blow-off losses / Large suction area
● Full aluminum design: maintenance-free.
●Fast check: prevent unloading and shutdown oil injection
⑨ Oil filter
● Filter the dirts in the lubricated oil reliably
●Oil particles can be controlled at 0.1 micron
● Ensure the smooth and well-lubricating oil system
⑩ Oil gas tank & Built-in separation system
● Oversized air and oil tank improves the cyclone effect maximising the separation process
● The high efficiency oil separator ensures that the oil carry over is less than 3ppm.
● System pressure loss:less than 0.02Mpa
⑪ Electrical control cabinet
● Siemens core electrical components are used to further enhance reliability.
⑫ All-steel internal pipe system
● All steel internal pipe work is used to prevent leakage and premature ageing often seen with flexible pipes
● Less pipe pressure loss

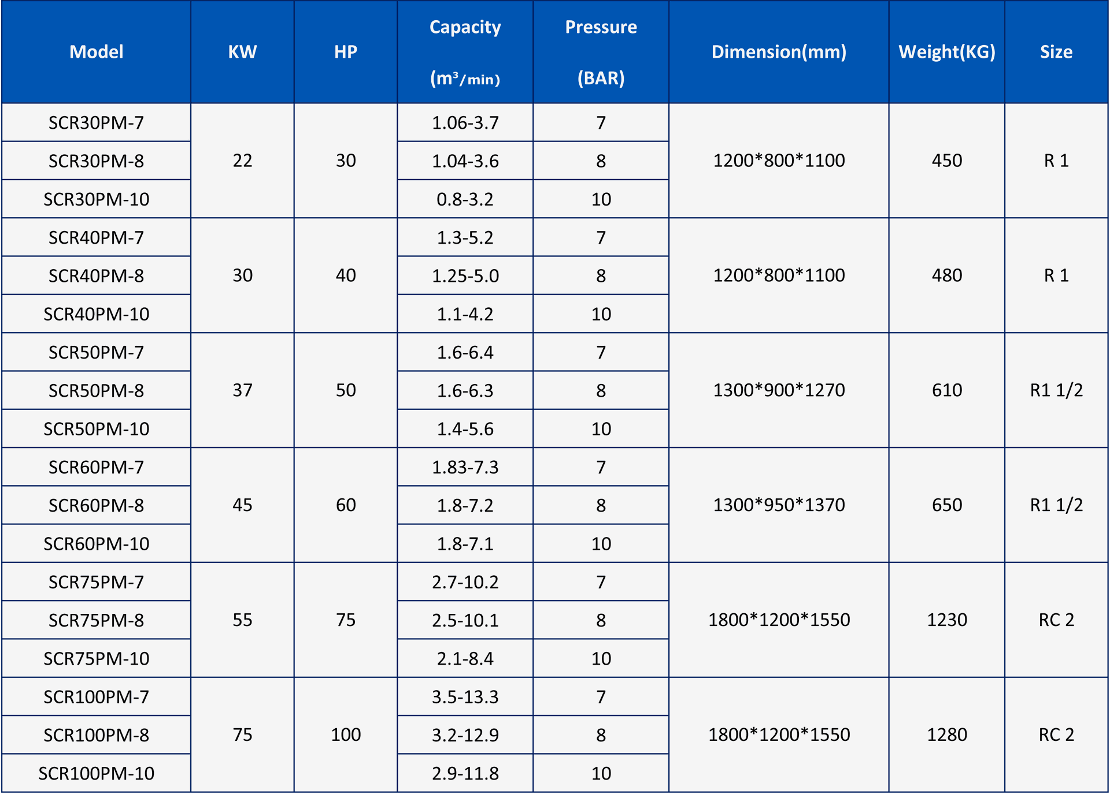

PRODUCT PARAMETER
Note:
Data conforms to ISO 1217 (Pressure 1 bar (a), Temperature 20 deg C, R.H 0%)
Standard voltage is 380V/50HZ/3P, other voltage is available.
The recommended best capacity range is 60%-100%.
Alpine/high altitude, high temperature, high humidity, high dust loads or other adverse working conditions will require specialized custom designs. These are available on special request.
We reserve the right to make changes and improvements to the design and appearance.
Specifications may change without prior notice.
